Anti-Theft & Security Detection Solution Using Vibration and Motion Sensors
Detect unauthorized movement instantly while maintaining ultra-low standby power consumption.
- High-sensitivity vibration detection for real-time alerts
- Near-zero standby power for battery-operated devices
- Reduced false alarms with optimized sensor response
Challenges in Anti-Theft and Security System Design
Security devices must detect real threats reliably while avoiding false alarms and minimizing power consumption.
Frequent Battery Replacement
Battery-powered security devices require long standby time, especially in remote or unattended environments.
High Standby Power Consumption
Continuous sensing solutions drain power even when no intrusion occurs.
False Alarms
Environmental vibrations such as wind, traffic, or minor impacts can trigger unnecessary alerts.
Complex Signal Processing
Traditional sensor systems require filtering algorithms to distinguish real events from noise.
These challenges make it difficult to achieve reliable and low power security detection using traditional sensing approaches.

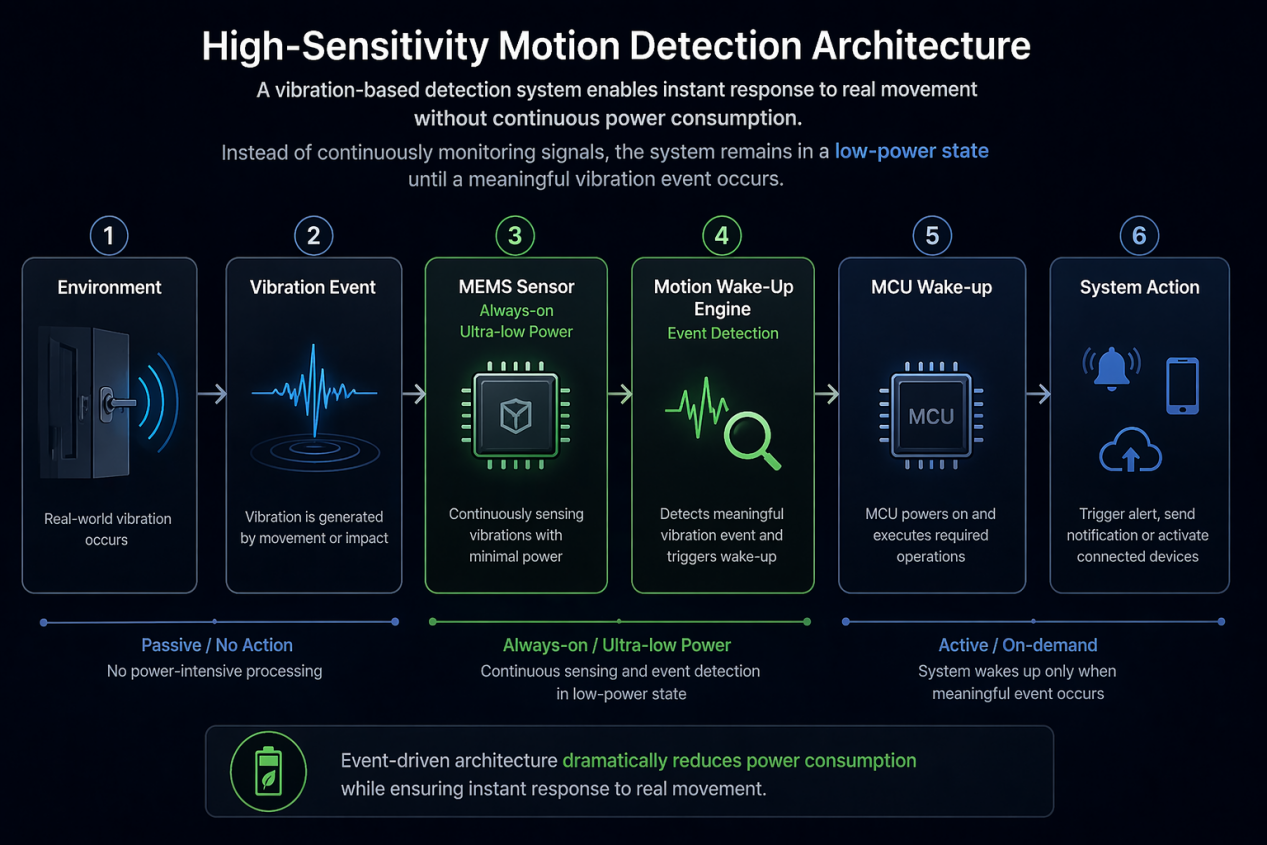

High-Sensitivity Motion Detection Architecture
A vibration-based detection system enables instant response to real movement without continuous power consumption. Instead of continuously monitoring signals, the system remains in a low-power state until a meaningful vibration event occurs.
System behavior — idle
- •MCU remains in low-power or sleep mode
- •System stays inactive during idle conditions
- •Sensor triggers interrupt upon abnormal vibration
When intrusion occurs
- →Sensor detects vibration
- →MCU wakes up instantly
- →Alarm / communication module is activated
- →Alert is triggered
This event-driven approach ensures immediate response while minimizing standby power consumption. Optimized sensitivity helps distinguish real intrusion from environmental noise.
Traditional Sensing vs Vibration-Based Detection
Compare accelerometer-based sensing with vibration-triggered wake-up to identify the most efficient solution.
| Feature | Traditional Sensor (Accelerometer) | Vibration Sensor |
|---|---|---|
| Power consumption | Continuous | Near-zero |
| Response method | Data processing | Direct trigger |
| MCU state | Active / polling | Sleep |
| False alarm rate | Higher | Lower |
| Firmware complexity | High | Low |
| System cost | Higher | Lower |
Typical Anti-Theft Applications
Smart Locks
Detect forced entry, door impact, or abnormal vibration.
Vehicle & E-bike Security
Trigger alerts when unauthorized movement is detected.
Asset Protection Devices
Monitor valuable equipment or shipments for tampering.
Alarm Systems
Enable vibration-triggered alarm activation with minimal power usage.
Recommended Sensors for Security Detection
Choose the right sensor based on sensitivity, environment, and system requirements.
KD1911H
High-Sensitivity Vibration Sensor
High-sensitivity detection for security applications.
- • Detect subtle vibration and tampering
- • Ideal for anti-theft and alarm systems
KD1902+
Enhanced Vibration Sensor
Ultra-low power motion wake-up sensor.
- • Near-zero standby current
- • Reliable trigger for battery devices
KD1902
Omni Vibration Sensor
Cost-effective standard solution.
- • Stable performance
- • Suitable for general applications
Not sure which sensor fits your design? Our engineers can help you select the optimal solution.
Build Reliable Anti-Theft Systems with Low Power Sensors
We provide sensor solutions, reference designs, and engineering support to help you build reliable and low power security systems.
