Accelerometer vs Vibration Sensor for GPS Trackers: Which One Saves More Power?

1. Introduction

Power consumption stands as one of the most critical factors in GPS tracker design, particularly for battery-powered devices deployed across vehicle tracking, asset monitoring, fleet management, and logistics. Battery life directly correlates with operational efficiency, maintenance costs, and reliability.

To maximize battery life, most modern tracking systems rely on motion detection to decide when to leave sleep mode and power the GPS module for position acquisition and data transmission.

The choice of motion sensing solution impacts system efficiency, total cost of ownership, complexity, and long-term reliability. Understanding vibration sensor vs accelerometer tradeoffs is essential for next-generation tracking designs.

2. Why Motion Detection Matters in GPS Trackers

In deployment, GPS trackers often remain idle most of the time and only need to activate when movement or displacement occurs—parked vehicle monitoring, stationary asset tracking, and intermittent equipment surveillance are typical examples.

Motion detection is the key trigger for system activation and the primary gatekeeper for power management over the device lifecycle.

A well-engineered motion solution enables: deep sleep during long inactivity (often nanoamp-level system budget), fast wake when movement occurs, reduced unnecessary GPS on-time, and extended battery life—potentially turning monthly charging into multi-month or yearly operation.

The efficiency of the motion subsystem determines how much time the tracker spends in ultra-low-power sleep versus active high-power states—one of the most impactful architectural decisions in the design.

For a deeper look at low power GPS tracker design using motion wake-up sensors, see our companion article: Low power GPS tracker motion wake-up guide.

3. Accelerometer-Based Motion Detection

MEMS accelerometers are widely used in GPS tracking. They provide precise motion data: acceleration, orientation, tilt, and multi-axis movement patterns.

Advantages: high accuracy (often milli-g resolution), rich data for analytics, mature ecosystems and tools, flexible sensitivity and sampling configuration, and suitability for activity recognition, fall detection, and impact sensing.

Limitations: continuous power draw even in low-power modes (often microamps), active MCU interaction via I2C/SPI, higher software complexity, higher BOM cost, PCB area for buses, and potential false triggers requiring filtering.

Even aggressive low-power accelerometer modes must keep monitoring circuitry alive, so cumulative drain over months or years can materially reduce battery life.

4. Vibration Sensor-Based Motion Detection

An alternative is a vibration sensor as a dedicated motion trigger, changing the power profile of the tracking system.

Unlike accelerometers that continuously digitize motion, many vibration sensors act as a hardware wake-up switch: passive until physical motion produces an electrical pulse or contact event.

Key characteristics: passive standby (no supply current to the sensing element), discrete pulses only when motion occurs, direct MCU wake-up via GPIO interrupt, near-zero standby current (nanoamp context), simple integration, high reliability of simple mechanical structures, lower cost than many MEMS solutions, and small footprint with simple pinout.

The core advantage of vibration sensor vs accelerometer for wake-only use cases is eliminating continuous sensor power—the device stays electrically dormant until motion generates a trigger.

Explore passive vibration and tilt options on our Sensor Modules page.

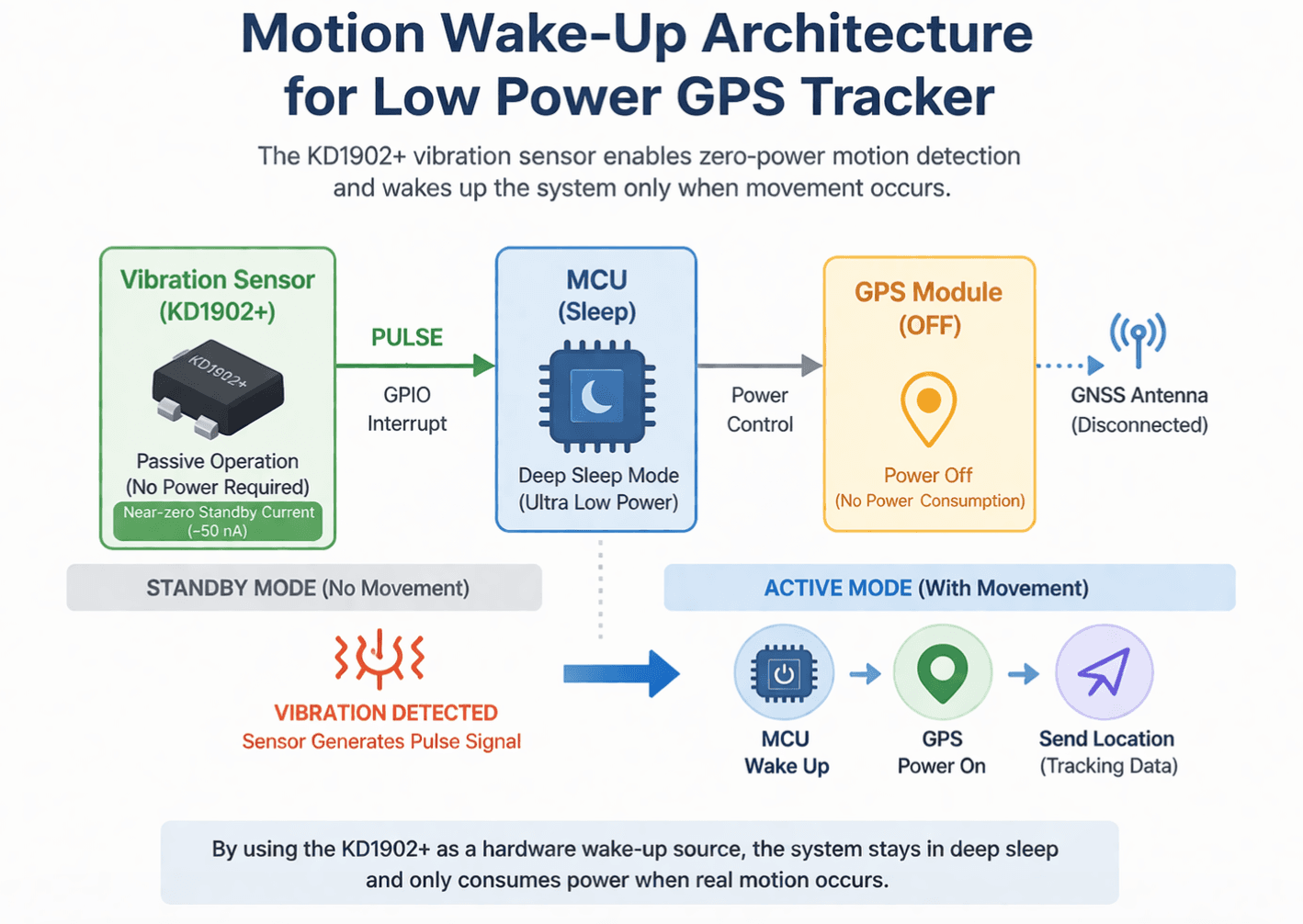

5. Example System Architecture

In a typical low power GPS tracker optimized for battery life: vibration sensor to MCU GPIO (interrupt), MCU in deepest sleep with only interrupt controller active, GPS module off via load switch or regulator control.

When motion occurs: sensor pulses → MCU wakes → GPS powers on → fix and upload → system returns to deep sleep. Power is spent mainly during real tracking events, not during long stationary periods.

This architecture minimizes energy use compared with always-sampling accelerometer approaches when the only requirement is whether the asset moved.

6. Direct Comparison

7. Which One Should You Choose?

Choose an accelerometer when you need detailed motion data, orientation, multi-axis analytics, or activity classification.

Choose a vibration sensor when the goal is to detect movement and wake from deep sleep without characterizing motion—typical for many GPS trackers that only use motion to start a location cycle.

In many real-world GPS tracker products, motion is used only to trigger wake and GPS acquisition—not for detailed motion analytics—so a vibration-based path is often the more power- and cost-efficient fit.

8. Recommended Solution

For ultra-low-power designs where battery life is critical, a vibration-based wake-up device can improve performance and simplify the BOM.

One strong option is the KD1902+ omnidirectional vibration sensor, tuned for compact, battery-powered hardware.

Highlights: ~50 nA standby context for the sensing path, passive operation, pulse-friendly output for MCU interrupt, compact SMD footprint, and 360° motion sensitivity for flexible mounting.

See the KD1902+ product section for datasheets, and the KD1902+ article for product context.

9. Conclusion

Accelerometers and vibration sensors both have a place in GPS tracker design; each fits different requirements.

When the priority is minimizing power and maximizing time between battery service, passive vibration wake-up is often simpler and more efficient than a continuously powered accelerometer used only as a movement gate.

Use accelerometers for rich motion measurement; use vibration sensors for ultra-low-power wake-up where motion detection is purely a system activation trigger.

Questions or samples? Contact Kingdta for application support.
